DARWIN 3D Endoscopic System for Enhanced Surgical Procedures
DARWIN 3D Endoscopic System

DARWIN 3D Endoscopic System

Endoscopy 2D to 3D

Endoscopy 2D to 3D

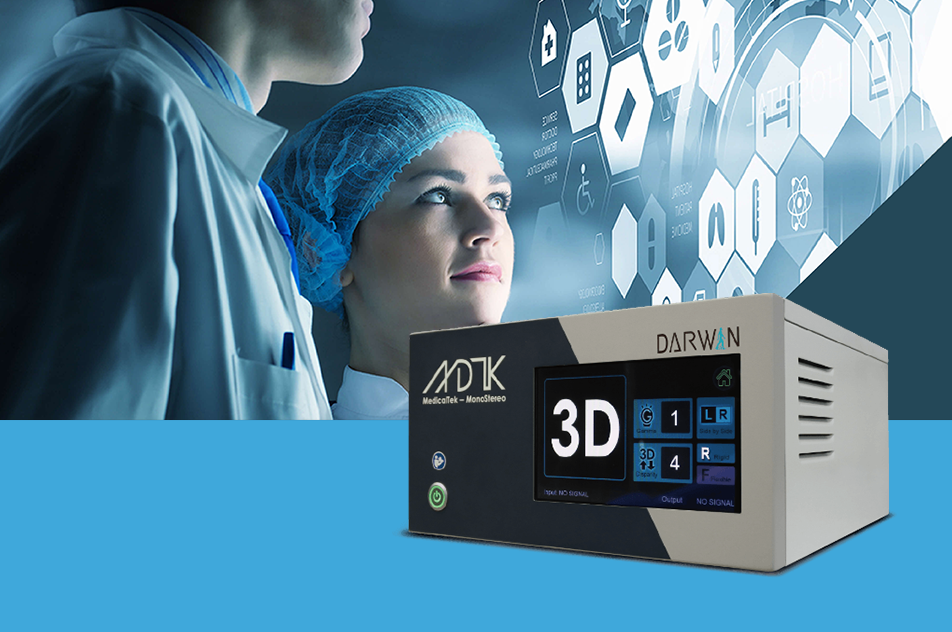

DARWIN 3D Endoscopic System

Imaging Consultancy Services Ltd is proud to offer the DARWIN 3D, a revolutionary solution that can transform most 2D endoscopy systems into 3D. With DARWIN 3D, all you need is one device and one 3D monitor to turn your existing 2D endoscopic images into 3D, making it a simple and cost-effective upgrade that offers a fast return on investment.

The DARWIN 3D is designed for superb compatibility and great ROI. It is compatible with most 2D endoscopy systems, eliminating the need to purchase an entire 3D endoscopy image box and scopes. The device is also designed to offer surgeons a range of available 2D endoscope functions, including the ability to rotate the scope, zoom in/out, and more.

One of the key features of the DARWIN 3D is its gamma adjustment function, which adjusts the exponential relationship between image contrast and brightness. By lowering the gamma value when needed, the darker parts of the image will be clearer, providing surgeons with better visibility.

Another benefit of the DARWIN 3D is its adjustable human factor, which allows the 3D parameter, the disparity levels specially designed for rigid and flexible endoscopy, to be adjusted according to the surgeons' preferences. This ensures that surgeons can enjoy the 3D view much more comfortably than with most other 3D endoscopy solutions.

At Imaging Consultancy Services Ltd, we are committed to providing our clients with innovative and reliable medical imaging solutions. Contact us today to learn more about the DARWIN 3D and how it can improve your medical imaging capabilities.

Key Features

3D Rigid

Clinical Benefit
Offers 3D solution for tiny scopes, e.g. 1.5mm, 2.7mm, etc., as well as scopes of different angles.
Increases the accuracy for suturing, vessel clamping, tissue separation and boosts the procedure safety
Reduces the operation time and blood loss during the procedure
5 Levels of Disparity

DARWIN 3D Rigid comes with 5 disparity levels for surgeons to choose from.

3D Flexible

Clinical Benefit
Helps physicians spot sessile polyps, flat adenoma, etc. more easily, and thus boost early detection of lesions
Speeds up the learning curve and helps result in better en-bloc resection for ESD/EMR
Brings easier cannulation for ERCP
3 Levels of Disparity

DARWIN 3D Flexible offers 3 levels of disparity for physicians to choose the one they prefer.

Multi-Application
Neurosurgery

Endoscopic skull-base surgery; Endoscopic spine surgery
Otolaryngology

Sinus surgery, Myringoplasty, Tympanoplasty, Congenital Ossicular Anomaly
Thoracis Surgery

Thorascoscopic surgery, e.g. Lobectomy
Gastroenterology

ESD, EMR, ERCP, Colonoscopy, PES
General Surgery

Laparoscopic Cholecystectomy, Colorectal surgery, (Para) Thyroidectomy
Gynecology
Myomectomy, Hysterectomy

Specifications

Type
AC Input     3D Visualization Unit
100~240V / 10~5A, 60~50 Hz
Dimensions
Weight     (W) 305 x (H) 160 x (L) 320 mm
Approx. 8 kg (Mass)(Main unit) Darwin
Image Input Terminal
Image Output Terminal     HDMI terminal for video capture
DP terminal for display
Output Resolution
3D Display Format     1920 x 1080, 60 fps
Line-by-line, side-by-side, top and bottom
Operating Conditions     Temperature: 0ºC~45ºC,
Humidity: 5%~90%,
Atmospheric pressure: 700~1060 hPa
Storage and Transport Conditions     Temperature: -20ºC~80ºC,
Humidity: 5%~90%,
Atmospheric pressure: 700~1060 hPa
Cabinet Material     Metal
Touch Panel     Capacitive touch panel 7” 800 * 480
